What is cleanroom stainless steel door?

  • 12, 12, 2021

What is cleanroom stainless steel door

Nowadays, stainless steel doors are more and more widely used in clean rooms,... However, not many people really understand it. Let's find out with VCR what a cleanroom stainless steel door is through the following article.

1. WHAT ARE CLEANROOM STAINLESS STEEL DOORS?

Cleanroom stainless steel door, also known as cleanroom stainless steel door, is a specialized door product installed in the cleanroom area. The function of the door is to seal the room, isolate cleanroom from the outside environment, and prevent the entry of dirt into the cleanroom.

Stainless steel door clean room has 2 layers: the outer layer is made of stainless steel. The inner layer is a material that is able to insulate, keep heat from being lost to the outside.

Stainless steel doors have wide applications, especially in industrial cleanrooms such as pharmaceutical clean rooms, electronic clean rooms, biological clean rooms, or hospital clean rooms, operating rooms,...

Read more: Why we should choose steel door for cleanroom?

CLEANROOM STAINLESS STEEL DOOR

Image: Cleanroom stainless steel door

2. CHARACTERISTICS OF CLEANROOM STAINLESS STEEL DOORS

The door frame is made of profiled aluminum alloy, the transmission structure is stable and firm. Long life of doors up to millions of times of opening and closing the door.
The door body uses PU core, honeycomb paper...etc.. Stainless steel surface attached with box glass to increase the aesthetics of the door.
Rubber gaskets are attached to the sliding slots, helping the 2 doors to overlap tightly, creating absolute airtightness, meeting the requirements of clean rooms.
Steel sliding door stainless works very smoothly, no noise. Sliding doors are controlled by setting infrared sensors, using passwords, manual control, or by other control devices... depending on the needs of the user.

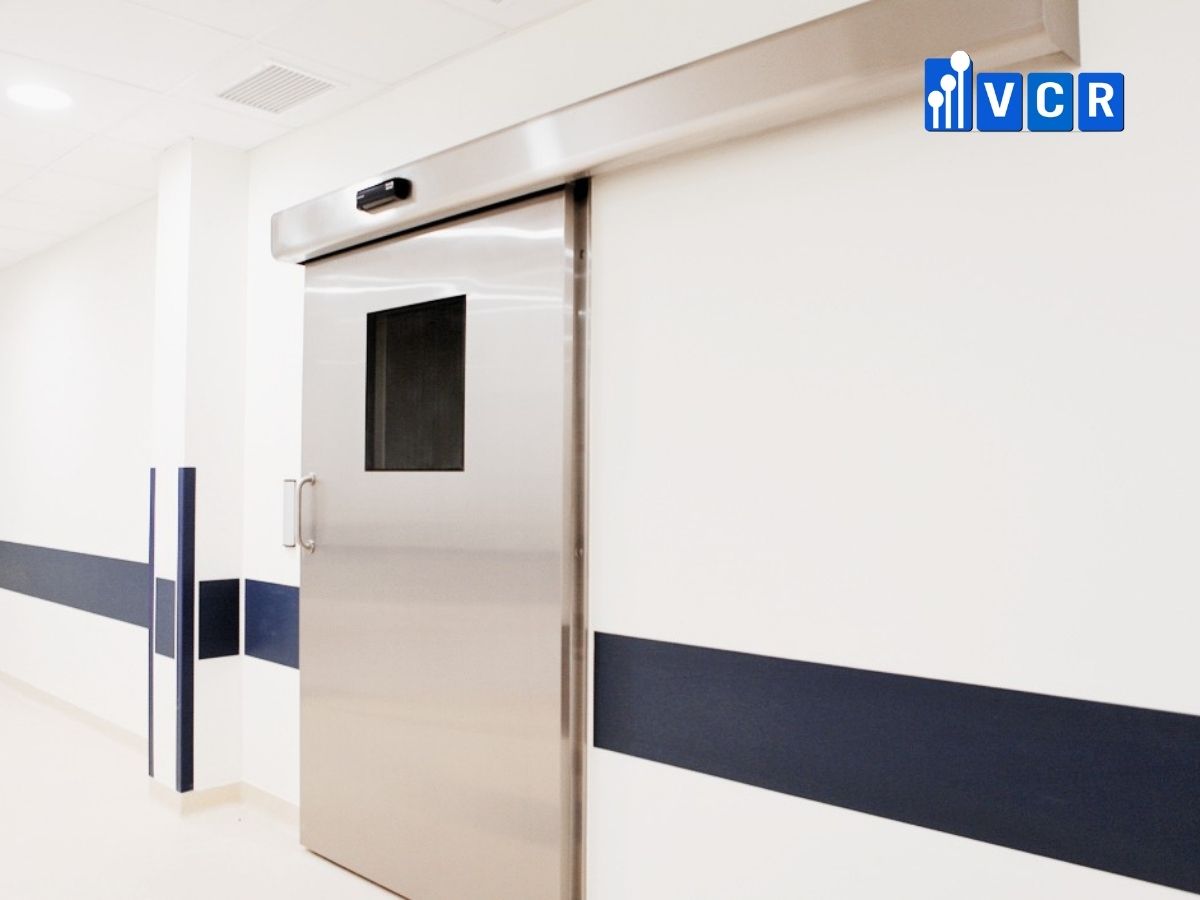

Stainless steel sliding door
Image: Stainless steel sliding door

3. HOW TO INSTALL CLEANROOM STEEL DOORS

3.1. For standard steel doors
Step 1: Fix the door frame to the wall with self-drilling screws. The latches are sealed with buttons.
Step 2: Use aluminum chute and aluminum accessories to install and fasten the door hole. Then, attach the frame to the wall, fasten the frame and seal the surrounding area with silicone sealant. To maintain the integrity and aesthetics of the stainless steel door, care should be taken to adjust the horizontal and vertical orientation of the door when installing the door.

3.2. For steel door with panel
Step 1: First, install the galvanized rails on the edge of the door,
Step 2: Install the door frame and fix it with screws. The pin is sealed with a cap (supplied by the manufacturer). Door frames are sealed with silicone sealant. To maintain the integrity and aesthetics of the cleanroom stainless steel door, pay attention to maintaining the level and verticality of the installation!

Read more: Cleanroom steel door installation
